CASH-Interface MC8 LITE - credit board with money changer functionality

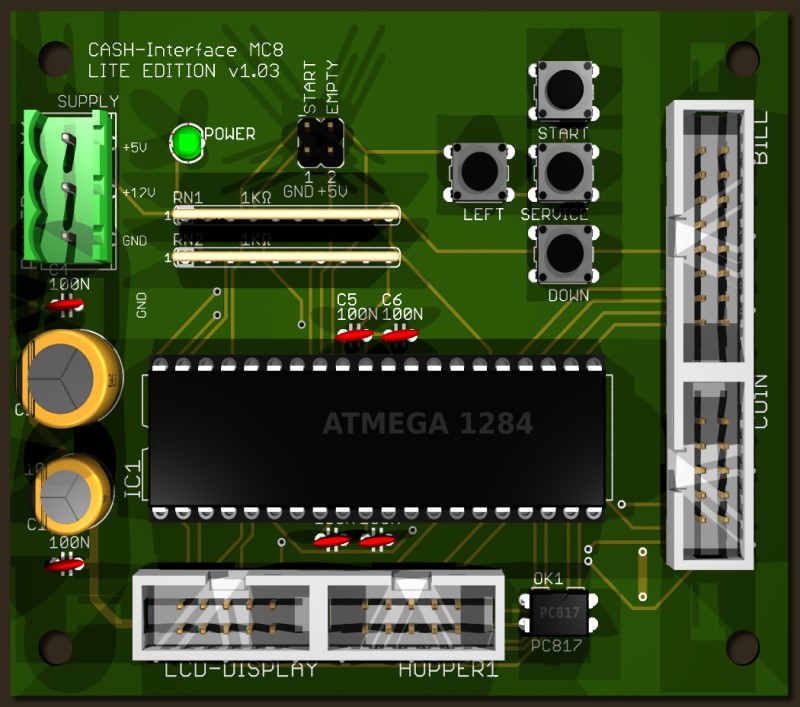

CASH-Interface MC8 LITE credit board

The CI MC8 LITE credit board can be used to build a simple money changer or token machine with one hopper.

Universally usable credit board. Works without PC because its micro controller controlled. For example as money changer, hard cash dispenser, cash machine, cash dispenser, token dispenser, or ticket dispenser machine usable.

CASH-Interface MC8 - Universal Kreditplatine

board size: 87,47 x 72,39 mm
(fits for DIN rail PCB holder)

Connections for bill validator, coin validator, hopper or ticket dispenser, and LCD display. The current credits are shown on the LCD display.

Every coin and bill channel can be adjusted. All settings are made in the easy usable service menu and are stored in the internal EEPROM.

Currently the following credit and smartcard systems can be connected:

• Nayax cashless payment solutions
• Ingenico - Smart POS - Self-Service
• CCV EU - Self-service Cashless Payment Solutions
• Payter Payment terminals
• OTI - Payment Readers Archives
• Sacoa Debit Card, POS and Redemption System
• USA Technologies - ePort Cashless Devices

→ Web-Shop Cashless Systems

CASH-Interface Nayax Connection

PULSE-Adapter [Coin]

Features:

• Service menu for adjusting settings.
• Every coin and bill channel can be adjusted.
   This way you can even realize a bonus system!
• Show the total payments (till).
• Show the payments done with hopper 1.
• The interface is monitoring 7 coin and 7 bill channels.
• The pinning of the connectors are designed for coin acceptors of
   the type NRI G13 - EMP800 - RM5 - MONEY CONTROLS C120 -
   MICROCOIN SP - and bill validators of the type NV9 / NV10.
   We offer also specially wired cables or adapters for all other types,
    e.g. NRI G40 or GBA HR1 / ST2.
• The pinning of the hopper connectors are designed for hoppers
   of the type Azkoyen U-II. It is possible to connect every hopper
   type that supports the LOGIC CONTROL mode, like NRI currenza,
   HS2012, Universal Hopper MK3 / MK4, Flow hopper,
   Note Dispenser ND-300, Seiko WH-3, CUBE MK II and others.
• At the moment 3 languages are supported: German,
   English and Hungarian. Other languages on request!

The service menu contains 40 menu items and can be activated with a push button on the board itself.

Money changer / token changer control:

Manual CI MC8 LITE money changer control

The credits for every coin and bill, as well as the coin value of the hopper are adjusted in the service menu. The display shows "READY". Inserting money the corresponding credits are added and shown in the LCD display. The corresponding amount of coins is paid out automatically.

In the service menu you can set for every banknote the amount of coins to be paid from hopper 1. If nothing is set, the board calculates by itself how many coins to pay out from the hopper using the hopper value which can be adjusted in the settings. If the hopper signals empty, it shows "HOPPER EMPTY" and the remaining credits in the display. After service personal has refilled the hopper, the pay out job can be started again via a push button.

Individual software designs on request.
Because of the usage of a integrated micro controller there are any variants possible you can imagine.


Scope of supply CASH-Package MC8 LITE: - 1x CASH-Interface MC8 LITE on DIN rail PCB holder - 1x LCD Display 162 (Char Size: 2,95x5,55) - 1x LCD display adapter - 1x Flat ribbon cable for bill acceptor (16pol., 0,7m) - 1x Flat ribbon cable for coin acceptor (10pol., 0,7m) - 1x Flat ribbon cable for LCD Display (10pol., 0,4m) - 3x flat ribbon cable for hopper (10pol., 0,7m) Price per piece: 119.- EUR (plus VAT) WebShop

Accessory: RM5 coin validator with front plate Various currency data sets available. Accepts up to 59 different coins or tokens. Channel 1-6 can be programmed by selfprog mode. Weather-proof design available for outdoor use. Price per piece: 159,95 EUR (plus VAT) WebShop

Accessory: EMP 850 coin validator with metal front plate Various currency data sets available. Accepts up to 59 different coins or tokens. 2 teach channels. Weather-proof design available for outdoor use. Price per piece: 169,00 EUR (plus VAT) WebShop

Accessory: NV10 USB bill validator More than 60 currencies and multi currency data sets available. Several front panels available. Price per piece: 229,00 EUR (plus VAT) WebShop

Accessory: GBA ST2 bill validator More than 60 currencies and multi currency data sets available. Several front panels available. Price per piece: 229,00 EUR (plus VAT) WebShop

Accessory: Flow hopper Holds up to 750x 1Euro coins! Can payout coins in the range of 15.5 to 32mm diameter, and 1.30 o 2.49mm thickness. Price per piece: 139,00 EUR (plus VAT) WebShop

Accessory: Power supply +5V and +12V DC Two voltages in one device. +5V DC for operating the CASH-Interface MC8 board, +12V DC for operating the load (e.g. coin or bill acceptor). Price per piece: 22,95 EUR (plus VAT) WebShop

Accessory: UNIVERSAL HOPPER MK2 / MK3 / MK4 Adapter Makes it possible to connect MK2 / MK3 / MK4 / Evolution hoppers with "Chinch Connector" to the HOPPER-Interface via a 10pol. flat ribbon cable (Azkoyen plug) With a jumper you can select hopper mode1 (LOGIC CONTROL) or hopper mode2 (COIN COUNTING). Jumper closed is mode1, jumper open is mode2. For +24V DC hopper it is possible to connect an external power supply. Manual Price per piece: 15,00 EUR (plus VAT) WebShop

Accessory: Note dispenser ND-300 Adapter Makes it possible to connect ND-300 note dispenser to the CASH-Interface2 via original ND-300 cable. The adapter can also be used to have one extra input and output for the CASH-Interface2, e.g. to be used with the photo booth system. Manual Price per piece: 9,95 EUR (plus VAT) WebShop

Accessory: PULSE-Adapter [Coin] With the PULSE-Adapter [Coin] it is possible to connect cashless payment systems easily via plugable terminal connector to a standard 10 pin coin validator plug. Manual Price per piece: 16,50 EUR (plus VAT) WebShop
