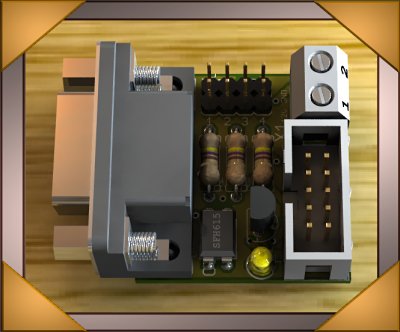

Coin validator PC adapter

With the coin validator PC adapter you can connect "pulse mode" coin validators of the type NRI G13 - NRI G18 - NRI G40 - EMP800 - RM5 - MARS - MONEY CONTROLS C120 - AZKOYEN - FAGE - ICT - APEX - MATRIX - VECTOR - MEI and others easily and economically to the USB port (with USB to serial converter) or to the serial port of the PC. You can connect ALL devices which are supporting the PULSE mode.

Features:

Operation of a "pulse mode" coin validator on the USB port
(with USB to serial converter), or on the serial port.

Power supply 12V up to 24V DC (depends on the coin validator)

Very easy integration to your own projects, e.g.:
    - via coin.exe using logfile monitoring
    - via coin.exe using WMCopyData
    - via coin.exe using ShellExecute
    - via your own COM port programming
    - via our KIOSK TIMER SOFTWARE

Hint: The coin validator MUST work with PULSE protocol,
because the adapter just monitors output line 1 !!!

Download COIN Software
this software package includes: COIN.EXE, coin validator PC adapter manual.
We suggest to use this software version.

COIN.EXE example program

Download COIN Software example program with source code
this software package includes: COIN.EXE, Delphi source code,
coin validator PC adapter manual.

COIN.EXE example program

Coin validator PC adapter manual
Coin validator PC adapter PDF


Scope of supply COIN-Package 1: - Coin validator PC adapter Price per piece: 19,95 EUR (plus VAT) WebShop

Scope of supply COIN-Package 2: - Coin validator PC adapter - Flat ribbon cable for coin validator (10pol., 0,8m) - SUB-D cable for PC connection (9pol., m/f, 1,8m) - Y-cable for PC power supply (4pol.) Price per piece: 24,95 EUR (plus VAT) WebShop

Scope of supply COIN-Package 3: - Coin validator PC adapter - Flat ribbon cable for coin validator (10pol., 0,8m) - SUB-D cable for PC connection (9pol., m/f, 1,8m) - Y-cable for PC power supply (4pol.) - KIOSK TIMER SOFTWARE (Lite edition license) Price per piece: 39,95 EUR (plus VAT) WebShop

Scope of supply COIN-Package 4: - Coin validator PC adapter - Flat ribbon cable for coin validator (10pol., 0,8m) - SUB-D cable for PC connection (9pol., m/f, 1,8m) - Y-cable for PC power supply (4pol.) - KIOSK TIMER SOFTWARE (Lite edition license) - Coin validator RM5 incl. front panel Price per piece: 179,95 EUR (plus VAT) WebShop

Accessory: - USB to Serial adapter incl. USB cable. Lets you connect serial devices directly to the USB port. Price per piece: 9,95 EUR (plus VAT) WebShop

Accessory: - 12V/1A DC power supply Coin validator power. Price per piece: 9,95 EUR (plus VAT) WebShop
